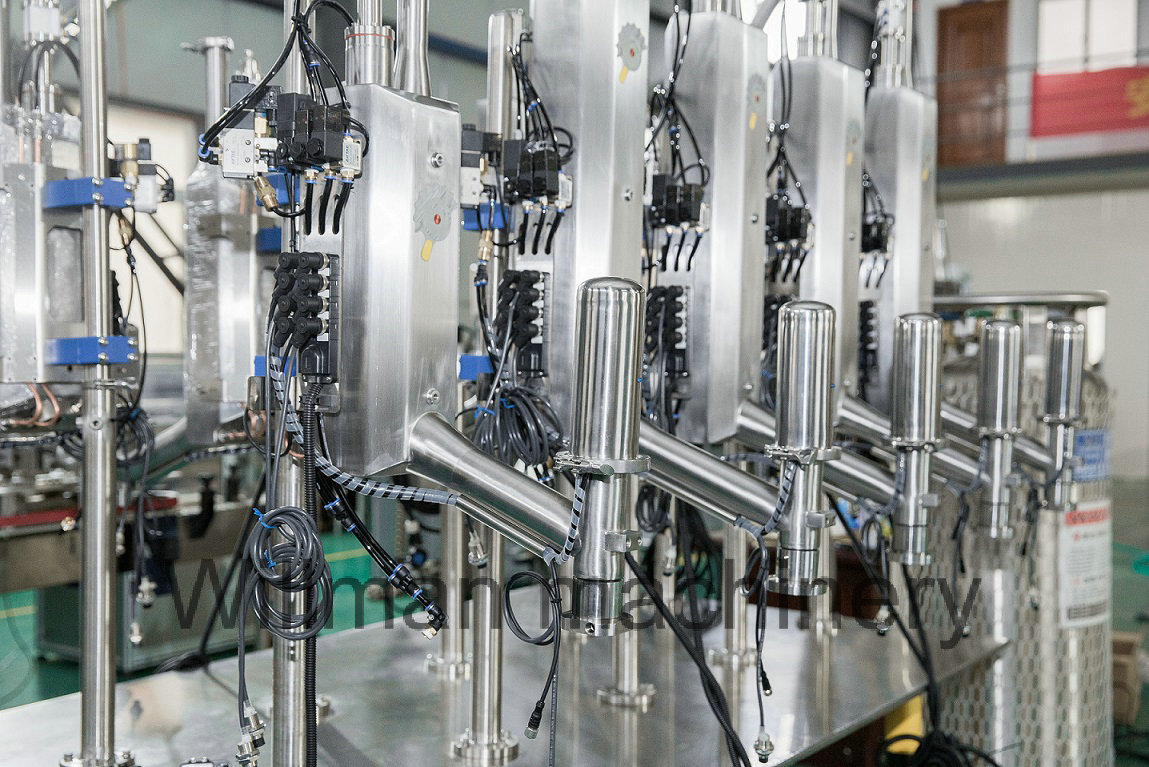

Our PET bottle and can pressurized liquid nitrogen filling machine is an ideal replacement for C] filling machines. It has been exported to countries such as Australia, the Middle East, and others. It features stable filling capacity and reliable operation. The core technology is borrowed from liquid nitrogen machines, and the core components are the same brand and model as those of the original imported machines. Based on actual domestic usage, some deficiencies of foreign equipment have been optimized, and technologies such as automatic defrosting have been implemented for maintenance.
WYD-300 production speed: 0-300 cans/minute; WYD-600 production speed: 0-600 cans/minute
Product Features
1. At low speeds, the system adopts a refueling method without refilling the tank, which reduces liquid nitrogen loss and lowers operating costs. At high speeds, the refueling valve is normally open, and automatic detection of high and low speeds is performed.
2. Vacuum insulation protection reduces operating costs.
3. Nozzle care system, phenomenon of frost and ice blockage on the spray head.
4. Liquid-gas separator ensures that liquid nitrogen is in a supercooled state, enhancing the purity of the liquid phase and facilitating more accurate and stable dispensing.
5. Liquid nitrogen buffering function, which controls the rebound and splash of liquid nitrogen, stabilizes the liquid nitrogen filling amount, and ensures balanced tank pressure.
6. Equipped with a 10-micron filter to prevent particulate contamination.
7. The speed of liquid nitrogen filling can reach up to 800 cans per minute, and when it exceeds 800 cans per minute, it becomes continuous filling.
The adjustability of multiple speed filling and the vacuum liquid nitrogen insulation pipeline ensure minimal liquid nitrogen consumption.
9. The progressiveness of the filling valve ensures the delivery of pure and single-phase liquid nitrogen.
10. The low outlet pressure of the filling valve ensures minimal splashing of liquid nitrogen.
11. Operating environment without frosting.
12. Adjustability of filling quantity and filling time during operation.
13. The system can be continuously monitored through the alarm indicator.
14. Selectability of PLC control/touch screen/user interface language.
15. It can be directly connected to a liquid nitrogen vacuum insulated pipeline and provides a complete liquid nitrogen supply system from the liquid nitrogen storage tank to the filling line.
16. With its compact design and simple installation, it is suitable for any filling production line.
17. The diversity of machine models ensures compatibility with any assembly line speed and application.
18. Applicable to all PET bottle and thin-walled easy-open can production lines.
