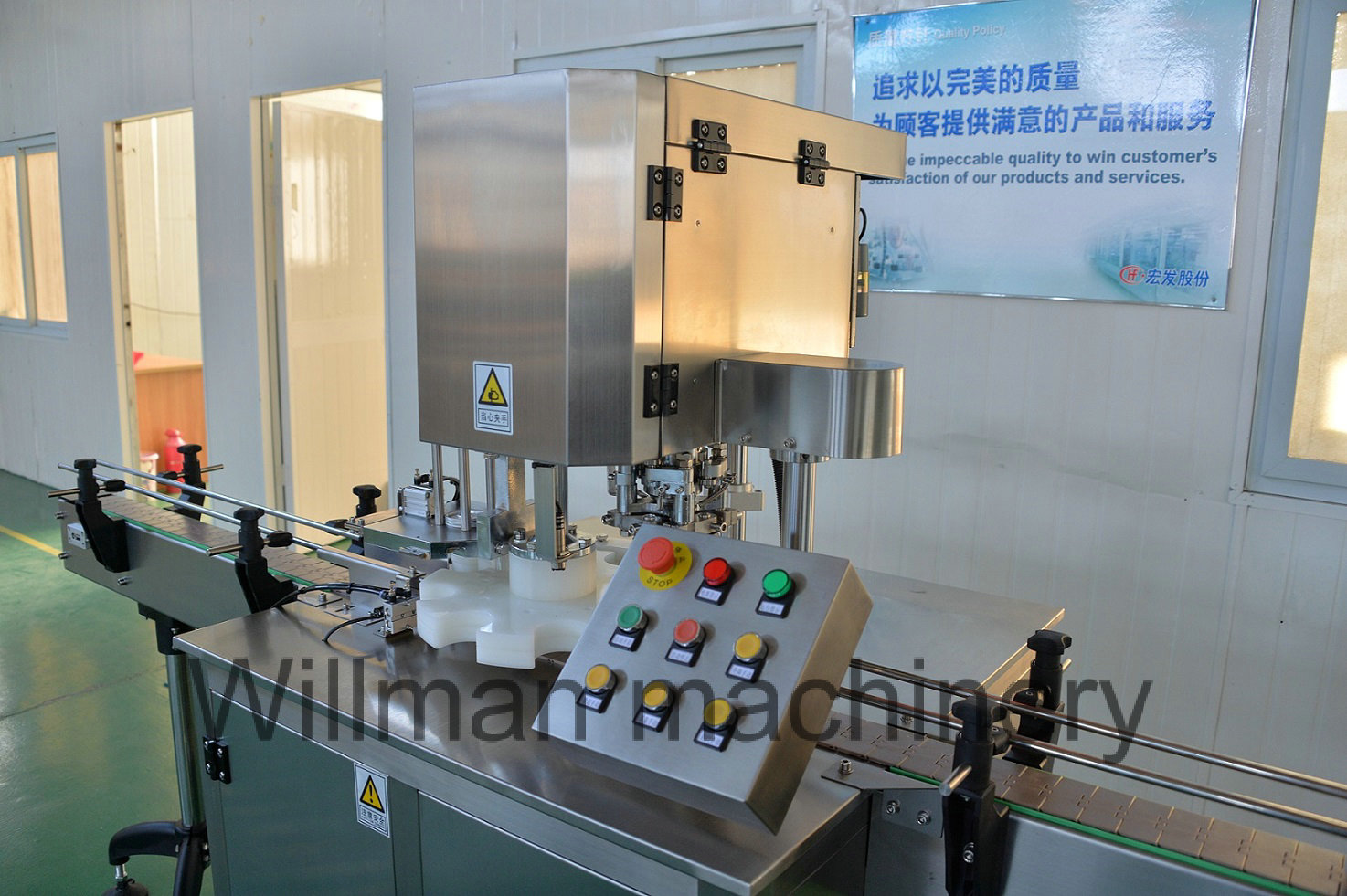

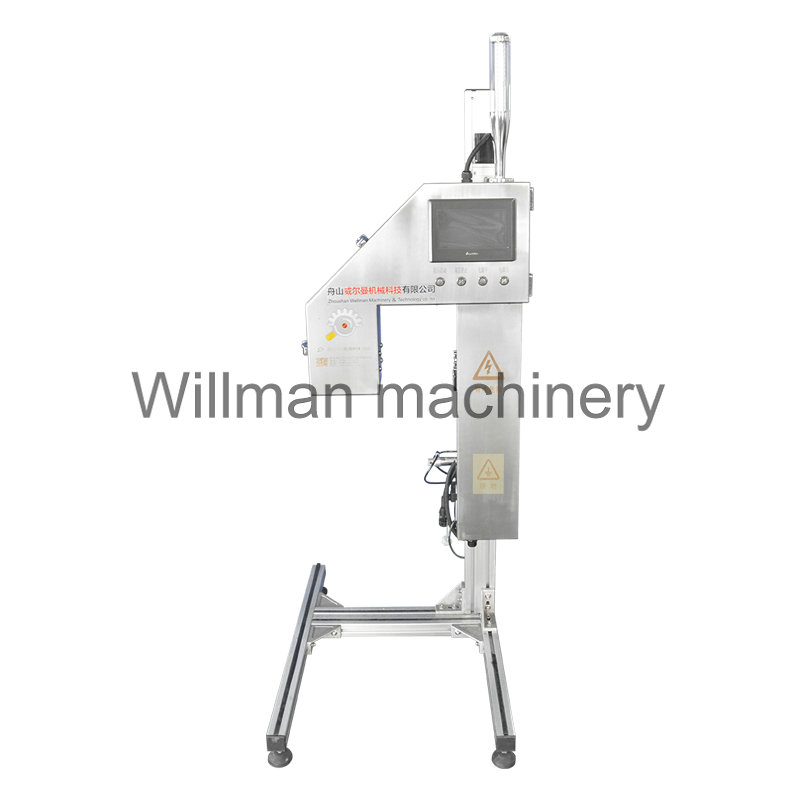

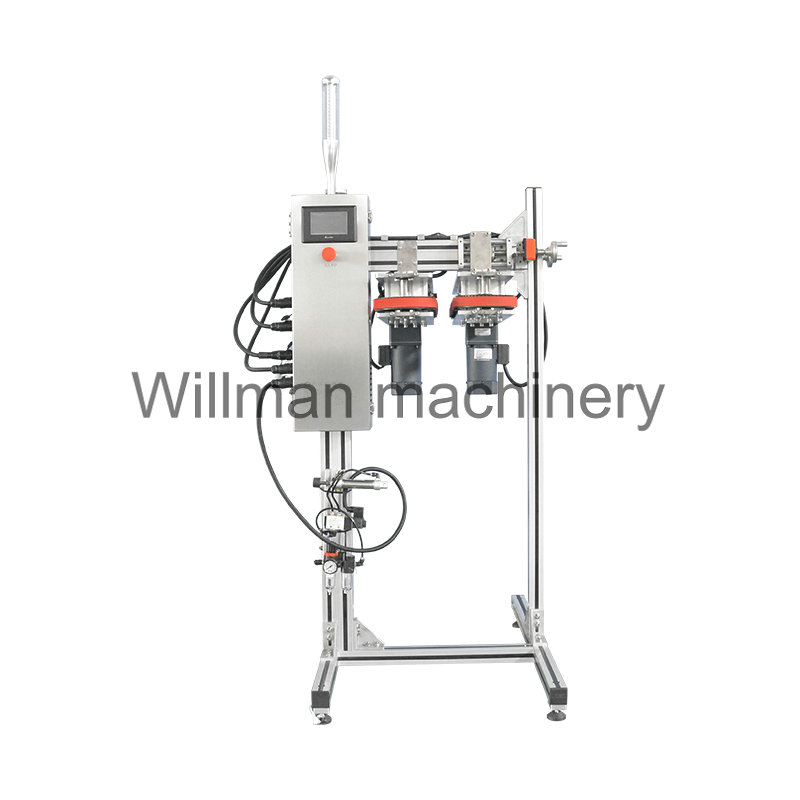

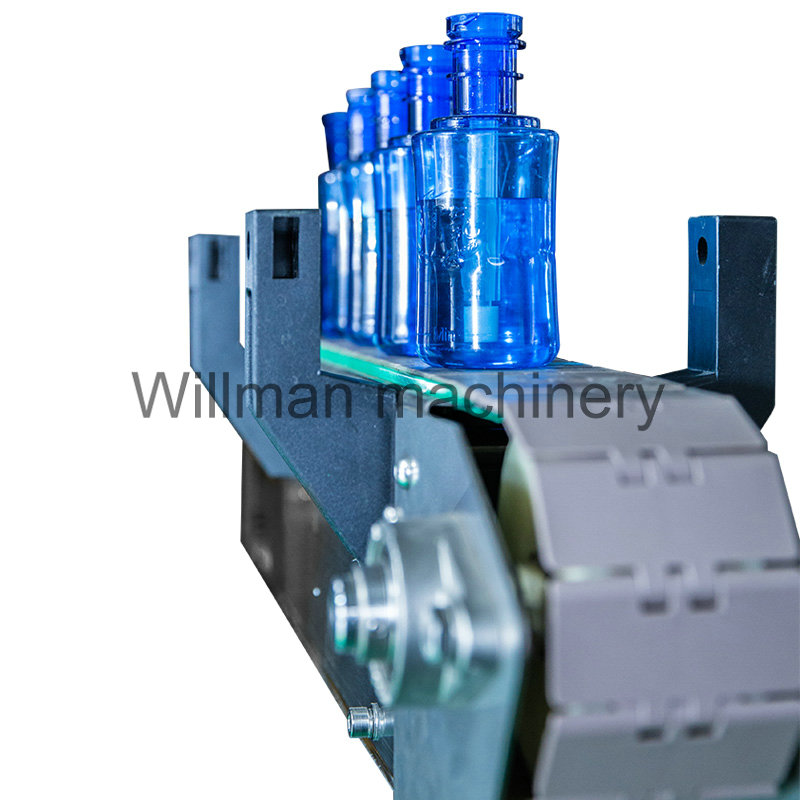

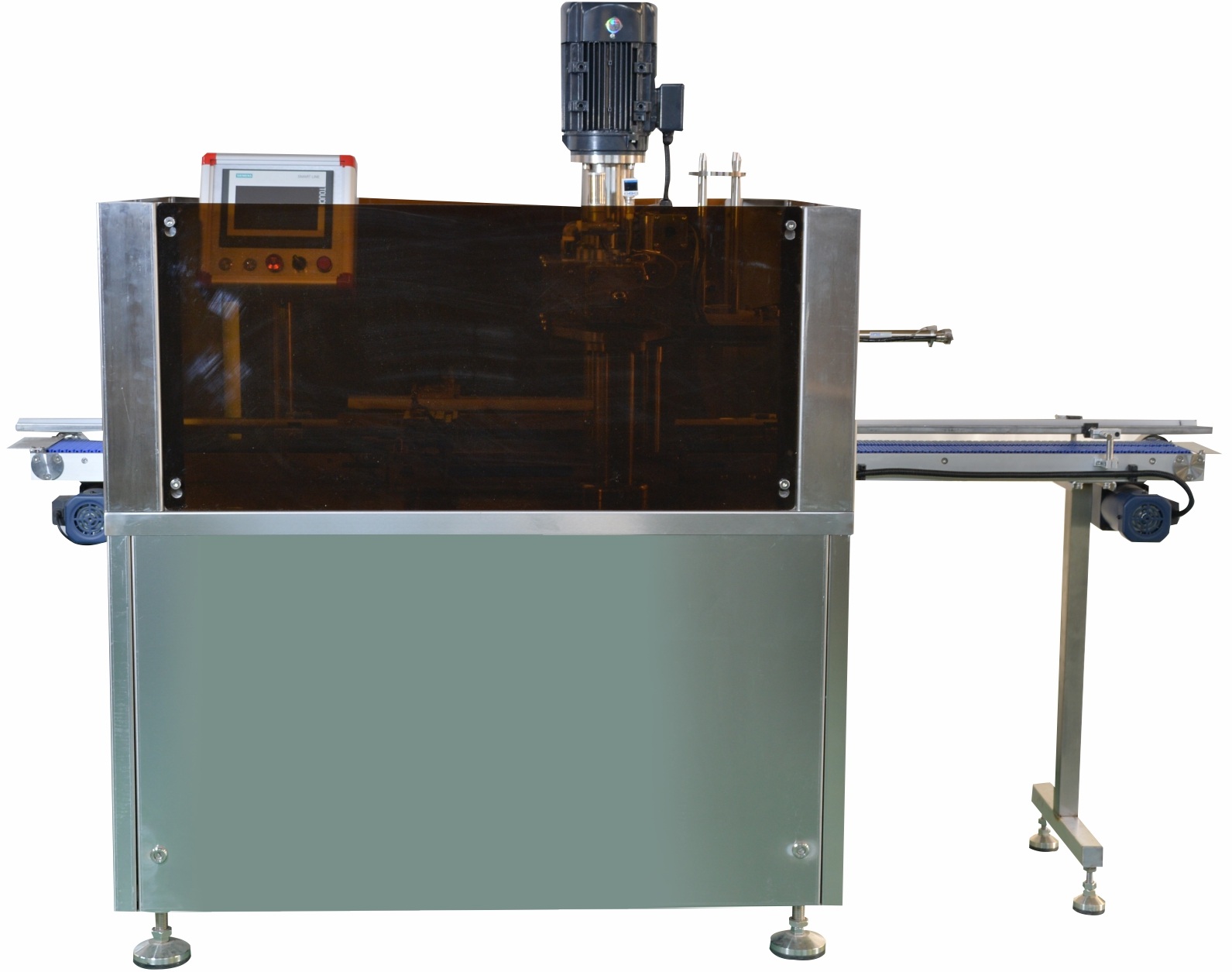

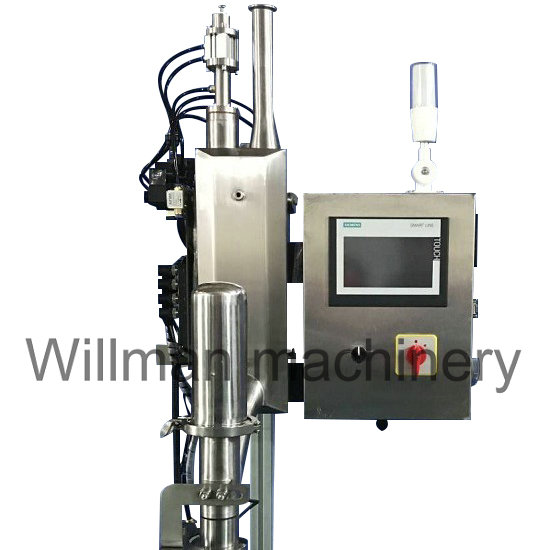

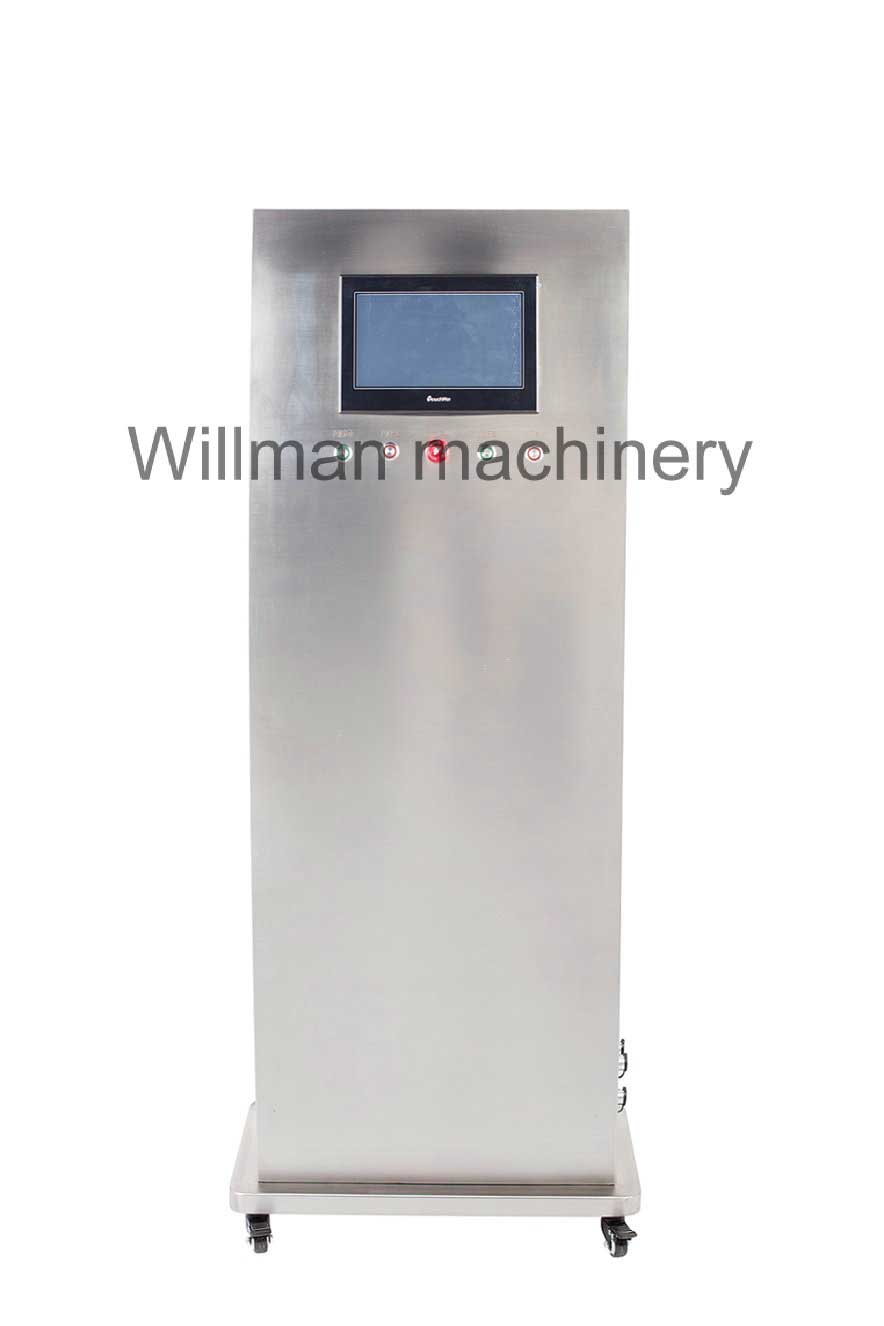

Aluminum foil sealing machine, internal pressure testing machine, liquid nitrogen filling machine, liquid level testing machine, vacuum testing machine
Technical Specifications
Material: stainless steel
Number of cans sealed: 1
Sealing speed: 30~50 cans/MIN
Sealing height: adjustable from 50-200MM
Applicable bottle diameter: 35-100MM (limited to one diameter)
Voltage: 220V/380V 50/60HZ
Power: 1.1KW
Weight: 500KG
Dimensions: 3000(L) *900(W) *1800 (H) MM (including 2m conveyor belt)
Voltage: 220V, 50HZ
performance description
1. Tank lid linkage control device: Only when a tank body enters, a corresponding tank lid is allocated; if there is no tank, there is no lid;
2. The operation panel is designed to be reasonable and simple, facilitating easy adjustment and maintenance;
3. High production capacity and high degree of automation, suitable as equipment for can sealing production lines;
4. The sealing wheel is made of stainless steel 304, which has high hardness, good performance, and is rust-resistant, ensuring excellent sealing performance.
Characteristic description
1. Unmanned operation, fully automated lower cover and sealing, in light of the escalating trend of labor costs, this equipment is bound to become a mainstream model;
2. The design of the can body not rotating during the sealing process provides better protection for the product and the can body, with high processing accuracy, and the sealing quality is superior to similar domestic products;
3. The production efficiency of this machine is 2 to 3 times that of a semi-automatic sealing machine. Additionally, due to the adoption of fully automatic lower cover and can sealing devices, it not only saves labor costs but also enhances production efficiency;
4. It is suitable for sealing various round-shaped cans such as tinplate cans, aluminum alloy cans, and paper cans. The operation is simple and easy to learn, making it an ideal equipment for the food, beverage, pharmaceutical, and other industries.
