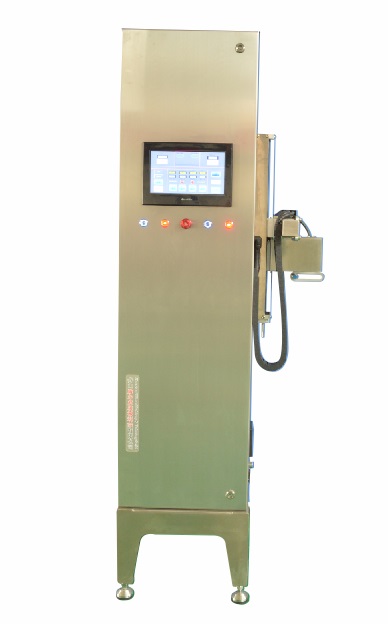

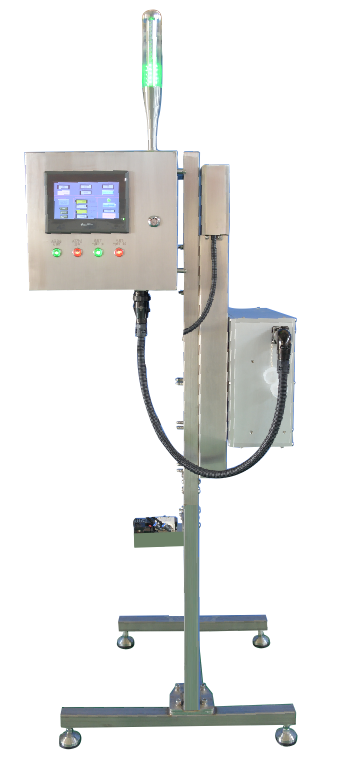

Aluminum foil sealing machine, internal pressure testing machine, liquid nitrogen filling machine, liquid level testing machine, vacuum testing machine
Scope of application of the product
Real-time monitoring of internal pressure in cans and PET bottles after liquid nitrogen filling, as well as pressure detection after filling other carbonated products. It can quickly detect and eliminate unqualified products and provide audible and visual alarms. Users can monitor the front-end equipment's normal operation at any time. Unqualified products entering the market can cause adverse effects. When continuous unqualified products are eliminated, it can promptly detect and warn of issues with the front-end equipment. It can be set to automatically stop the front-end equipment function to reduce the expansion of losses. Additionally, with this detector, users can more easily debug the liquid nitrogen machine's filling volume, without damaging the can body, to determine whether the internal pressure meets the required standards.
Product Features
This detection system utilizes Siemens PLC and high-precision dynamic tracking sensors. The sensors are capable of detecting minute pressure changes, and through PLC calculation and comparison, provide timely judgment results, achieving real-time monitoring for each tested product that passes through. The detection accuracy of this equipment is more than 10 times higher than traditional methods for curved surface detection.
Product Parameters
Rated input voltage: 220VAC-50HZ ±10%
Current: ≤5A
Humidity: Relative humidity 0%-99.99%
Operating altitude: Capable of operating at an altitude of 6050 meters
Noise: Continuous noise <78DB(A)
Overall weight: 150KG
Capability: Speed of 1200 cans per minute
Adapt to the product
Carbonated products (beer, carbonated beverages, products with added liquid nitrogen, PET bottles)
